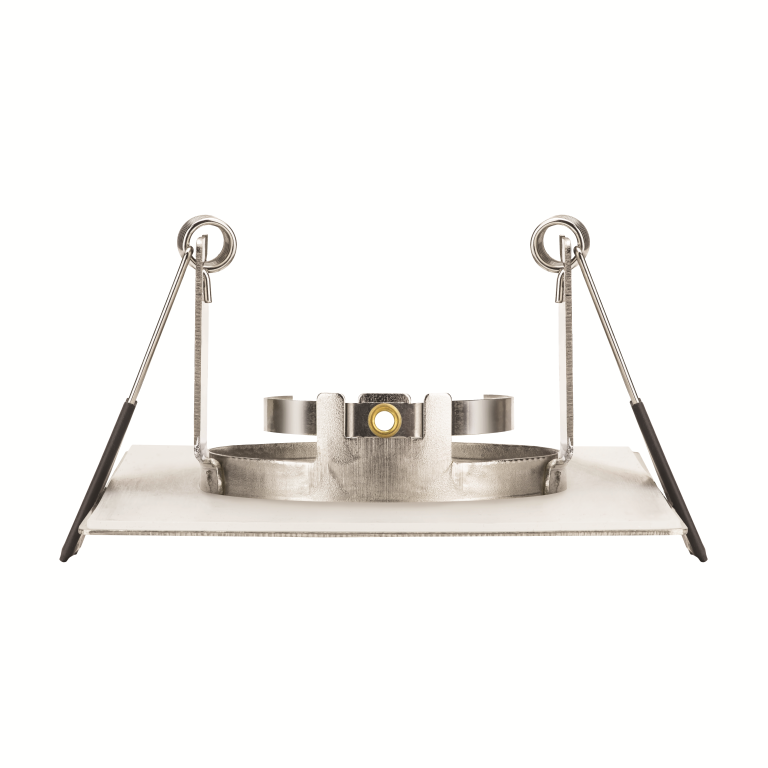

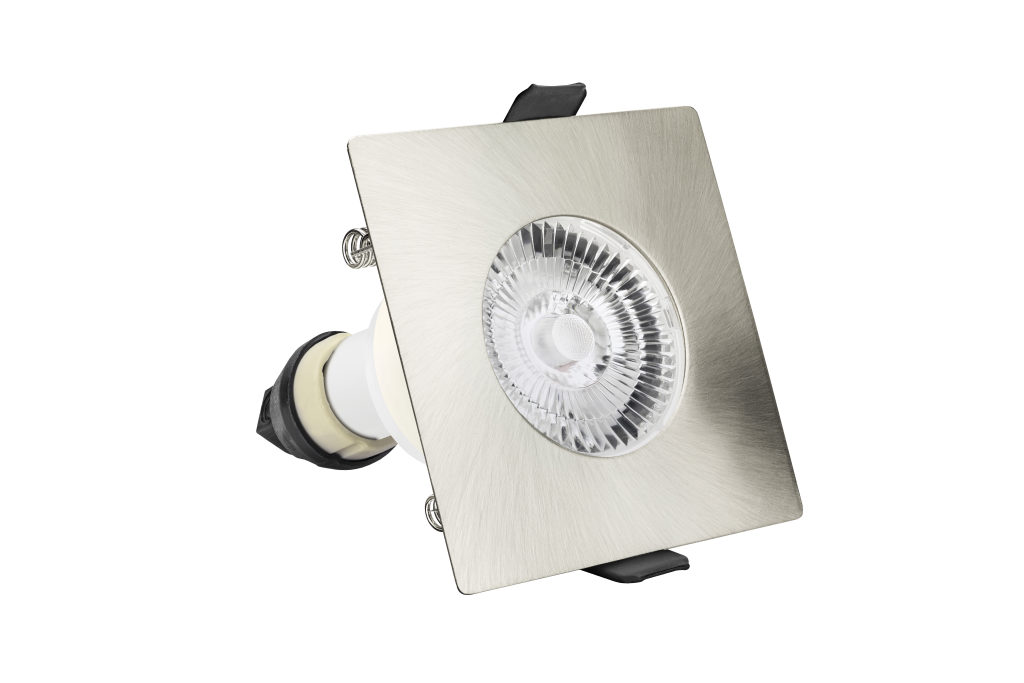

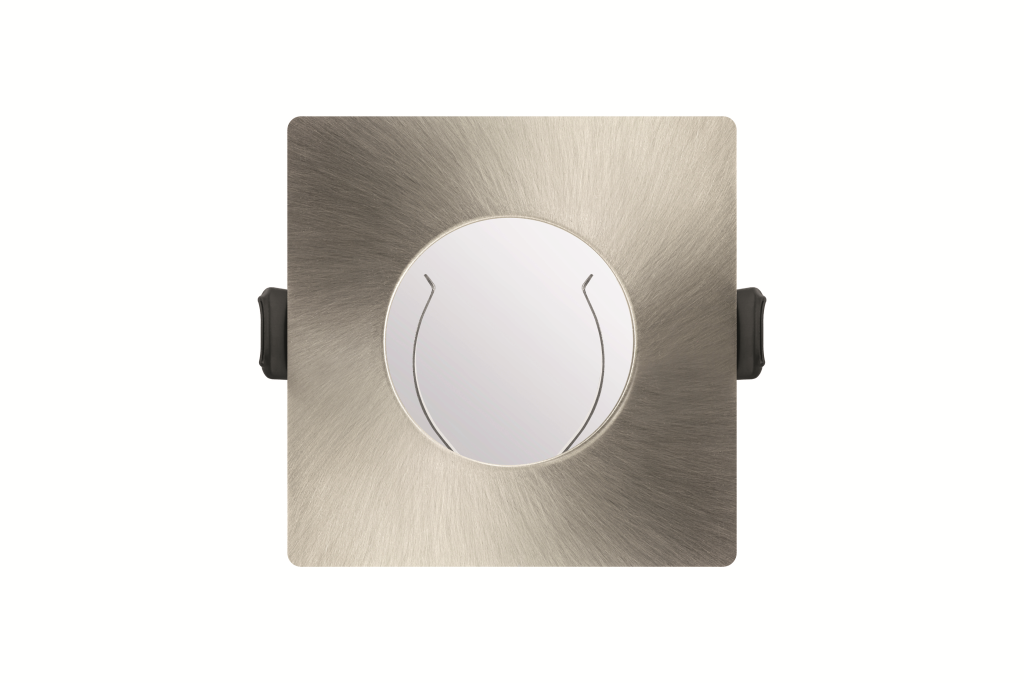

Fire Rated Square Downlight with GU10 Holder and Loop-in Loop-out Terminal Block

Part Number: ILDLFR70D008 Category:

ONLY £

Description

Loop-in Loop-out Terminal Block

Additional information

Product

Luminaire

Type

Downlight

Lamp Type

LED Fixed

Face Shape

Square

Mounting Position

Ceiling

Mounting Type

Recessed

Adjustability

Fixed

Fire Rated

Y

Dimmable

N

Corrosion Resistant

N

Vandal Resistant

N

Microwave Sensor Included

N

Photocell Included

N

PIR Included

N

Cover Included

Y

Cover Type

Glass Cover

Ballast/Starter Included

N

LED Driver Included?

N

Lamp(s) Included?

N

Number of Lamps

1

Ingress Protection

IP65

Emergency

N

Self-Contained

N

Housing Material

Steel

Bezel/Trim Colour

Satin Nickel

Cover Material

Glass

Cover Colour

Clear

Cut-Out Diameter

70 mm

Recess Depth

40 mm

Length

85 mm

Width

85 mm

Voltage

220-240 V

CE Approved

Y

Warranty

3 Years

Unit Weight

0.07 kg

Target Liverpool
Target Preston 0
Target Smithdown 10
Target Wavertree 0
General Specification
Installation Instructions
Test Results Sheet
